Zone Control

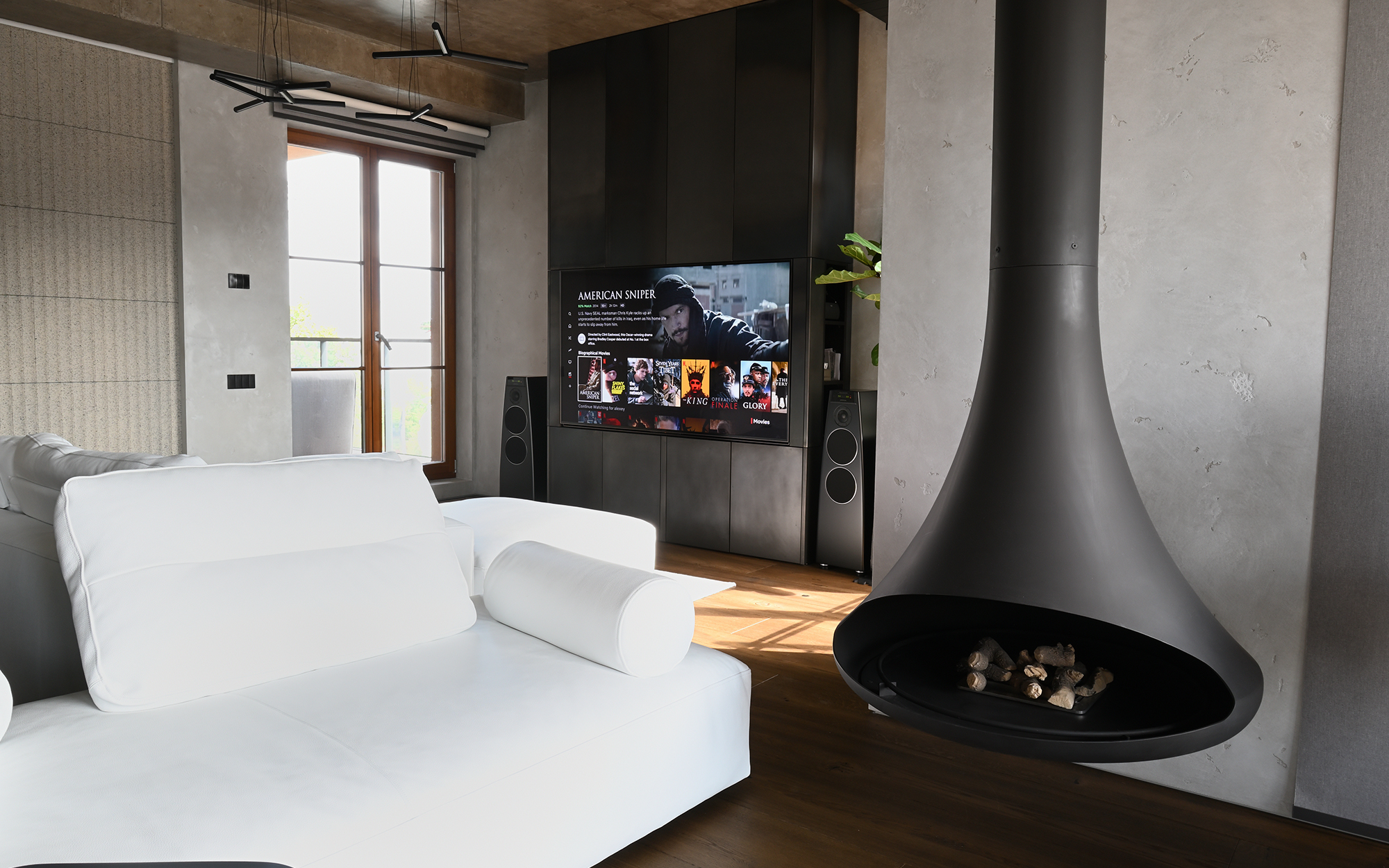

The UHD121 integrates seamlessly into modern home installations, delivering Meridian’s signature sound performance from today’s TVs with ease.
UHD121 connects your TV to Meridian loudspeakers via HDMI eARC, delivering both audio and volume control through one streamlined link. Supporting high-resolution audio up to 24-bit/192kHz, it ensures every soundtrack is presented with clarity, depth and richness, transforming ordinary viewing into an extraordinary listening experience.
Find a distributorZone Control

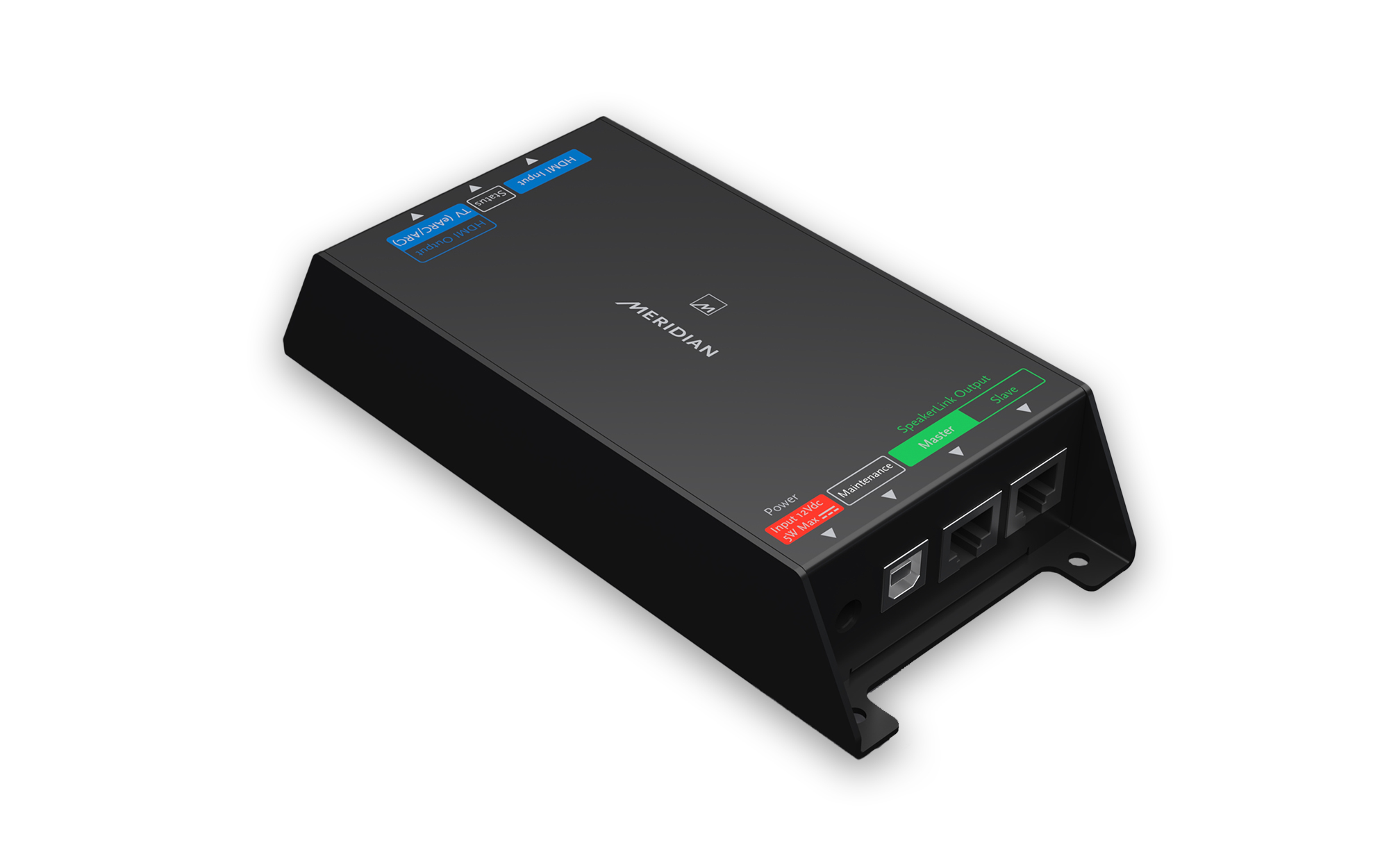

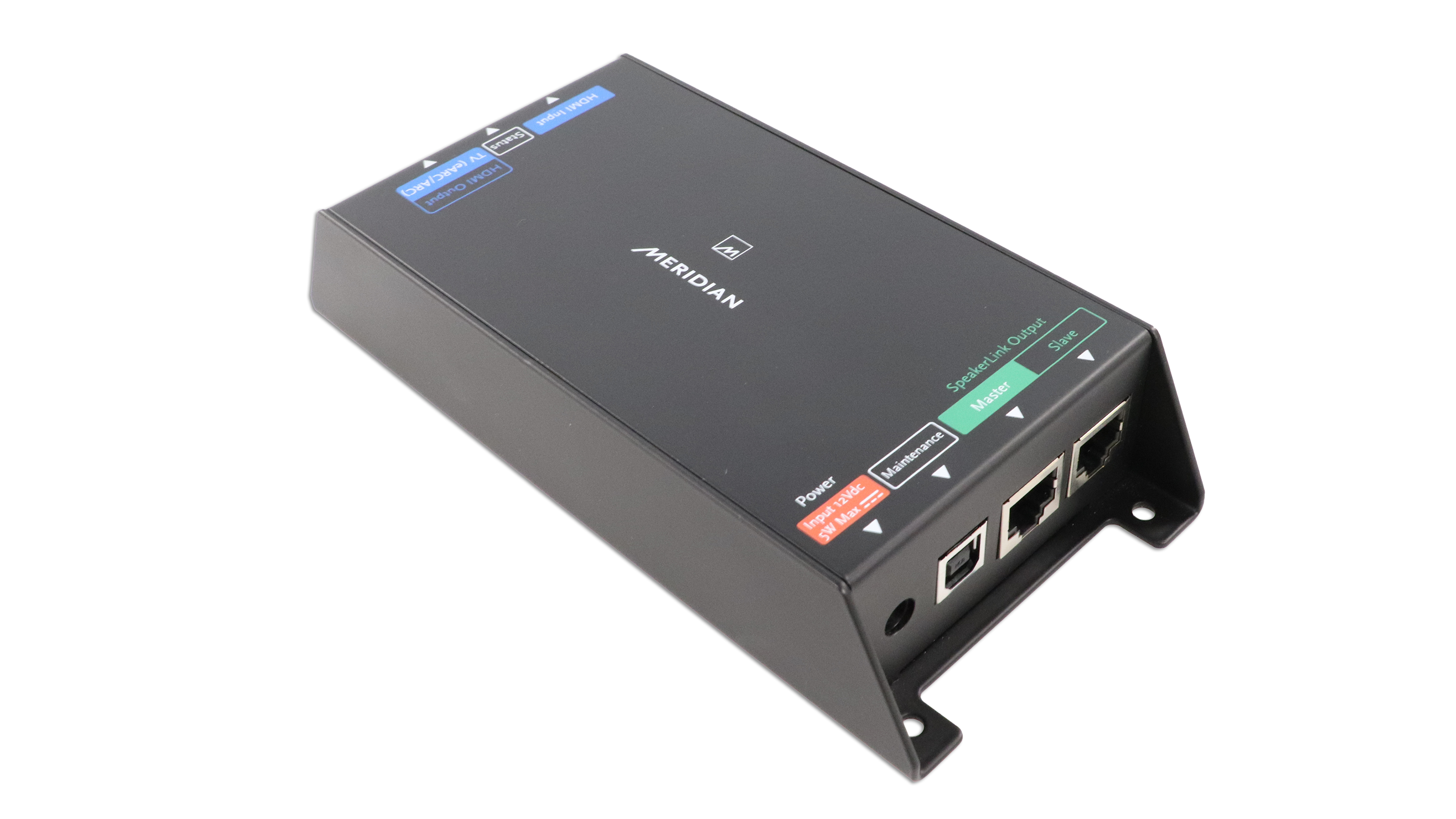

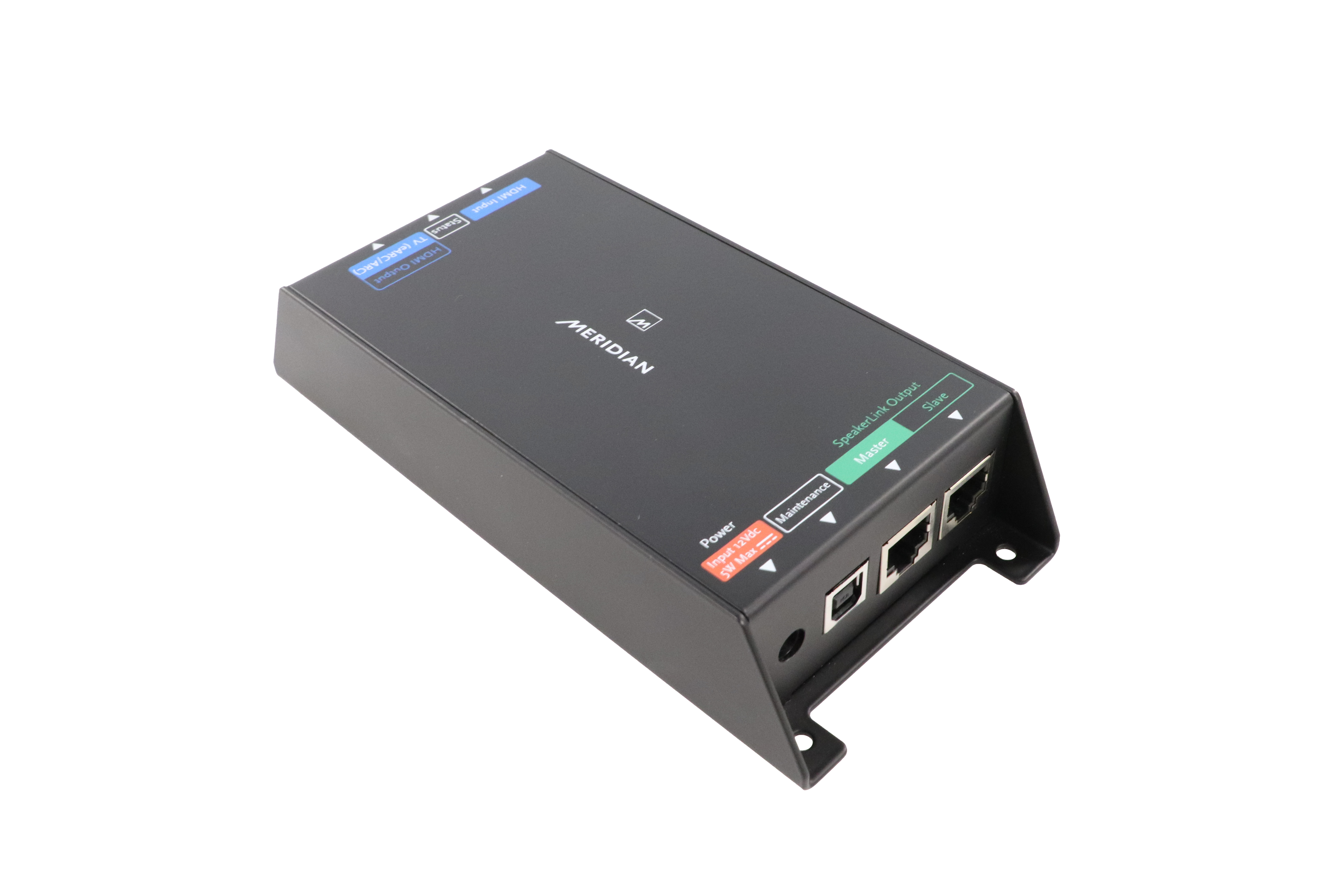

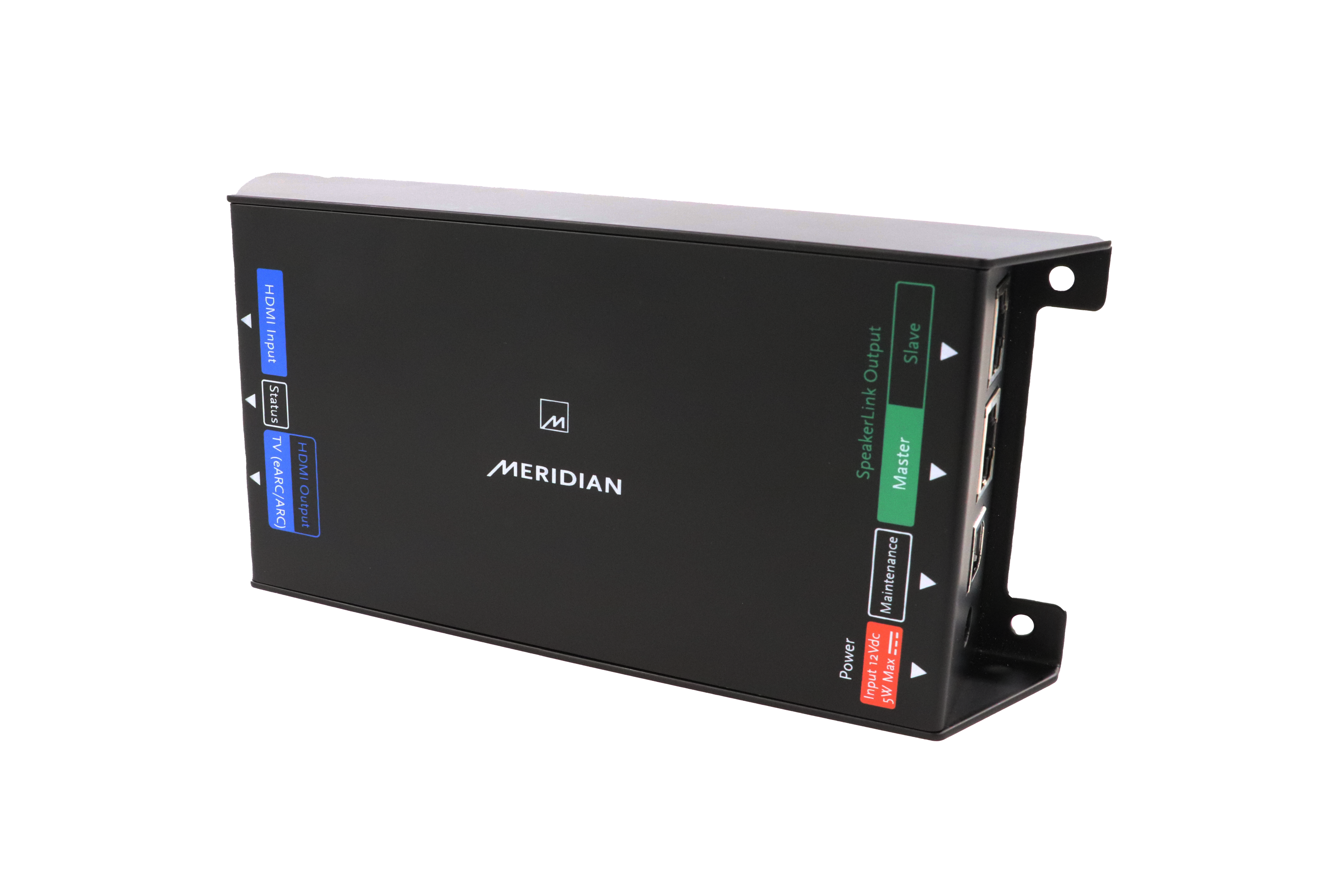

UHD121
Compact and discreet, the UHD121 connects directly between a TV’s HDMI eARC/ARC port and Meridian DSP loudspeakers via SpeakerLink. Fully CEC enabled, the system powers on and off with the TV, and volume is controlled from the TV’s own remote. This delivers a seamless experience: high-performance sound with simple, intuitive control — no extra remotes, no additional steps. Unlike generic eARC adapters, UHD121 is a manufacturer-engineered, audiophile-grade controller designed for integrators and the Meridian DSP ecosystem.
Flexible system design - daisy-chain or star-wired SpeakerLink connections plus an additional HDMI input for direct source integration.
Luxury sound, simple control - enables Meridian DSP loudspeakers to integrate directly with TVs, all controlled from the TV’s own remote.
Out-of-the-box performance - plug-and-play in most systems, minimising installer time and client training. Works with existing Meridian DSP loudspeaker systems, protecting customer investment and enabling straightforward upgrades.

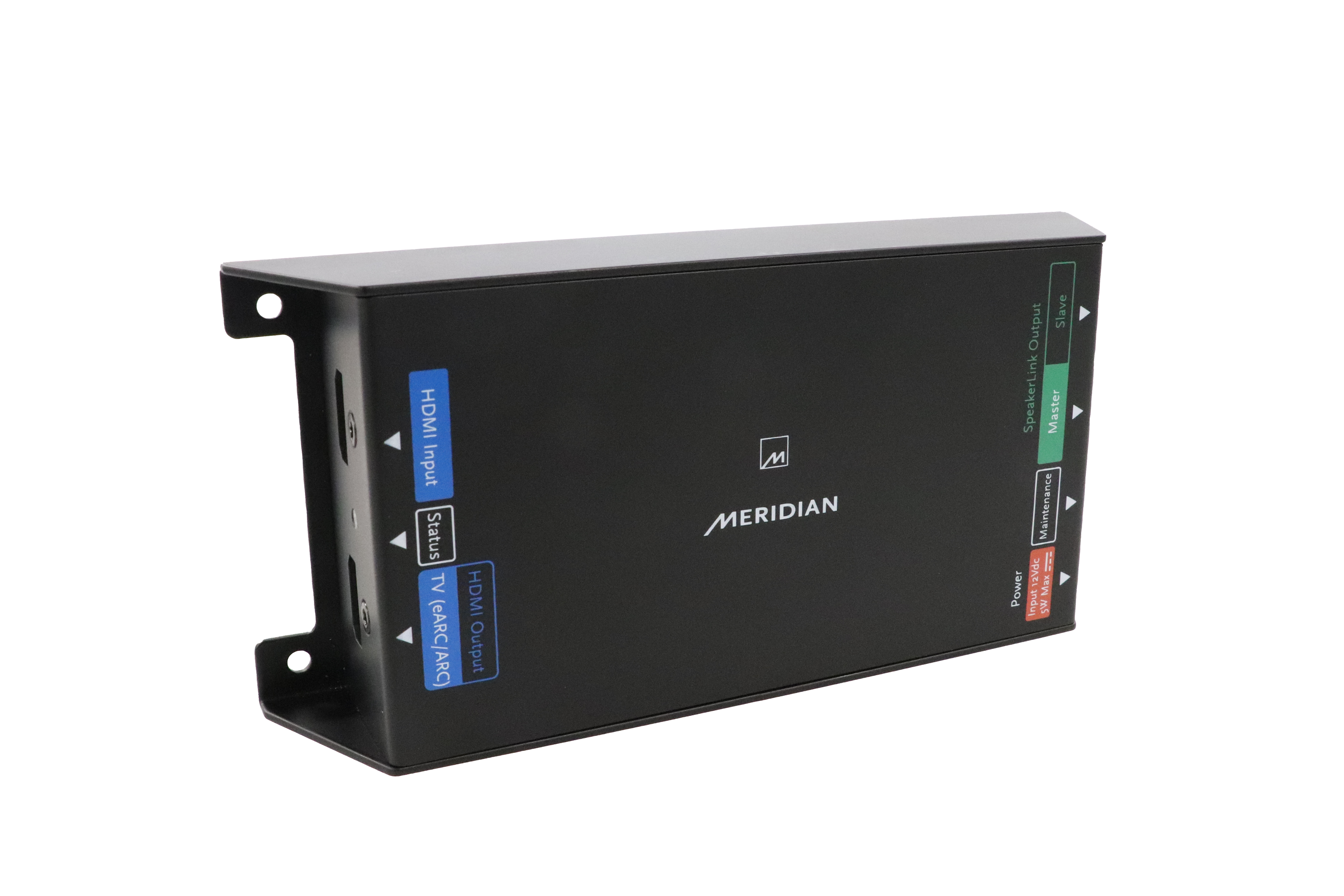

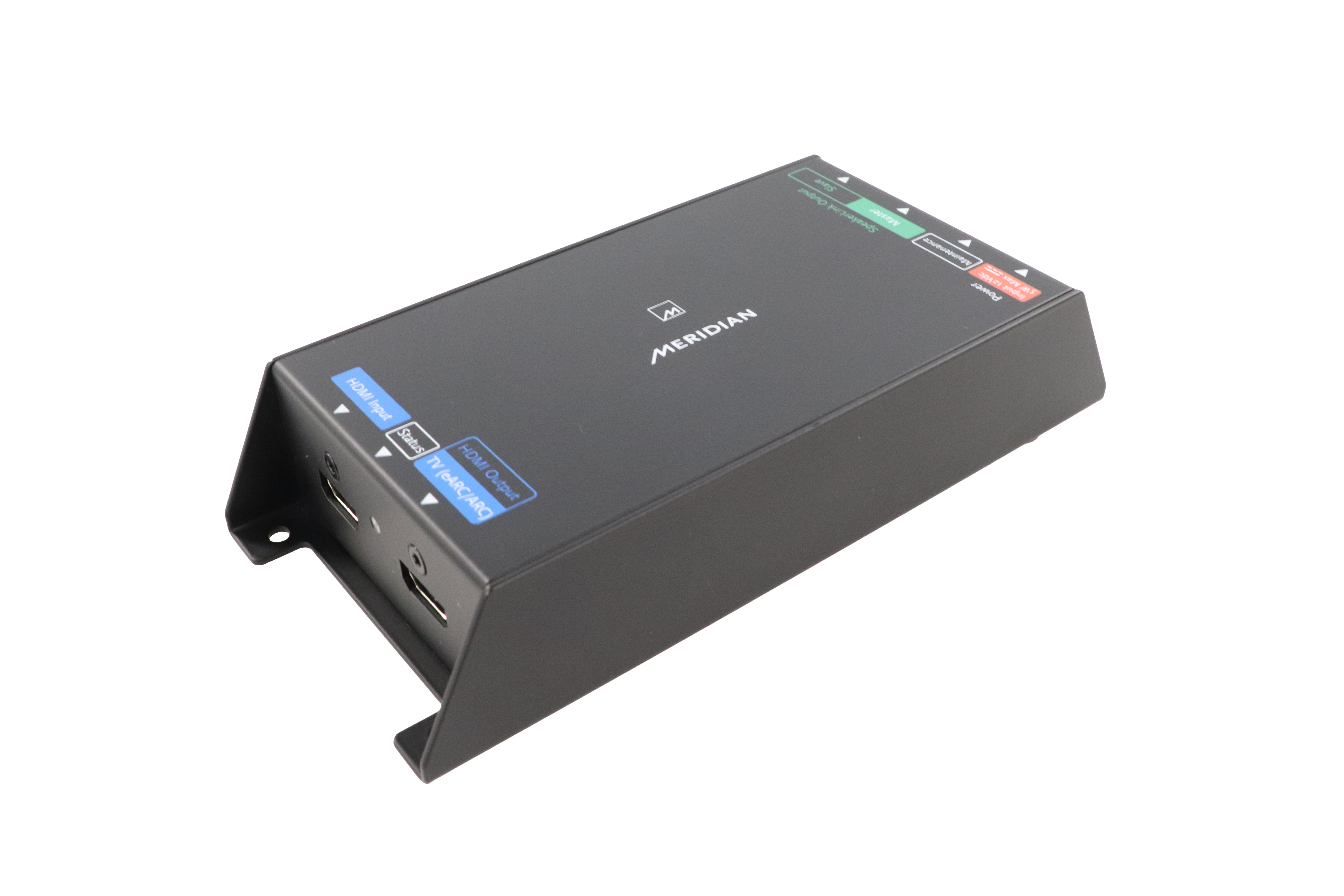

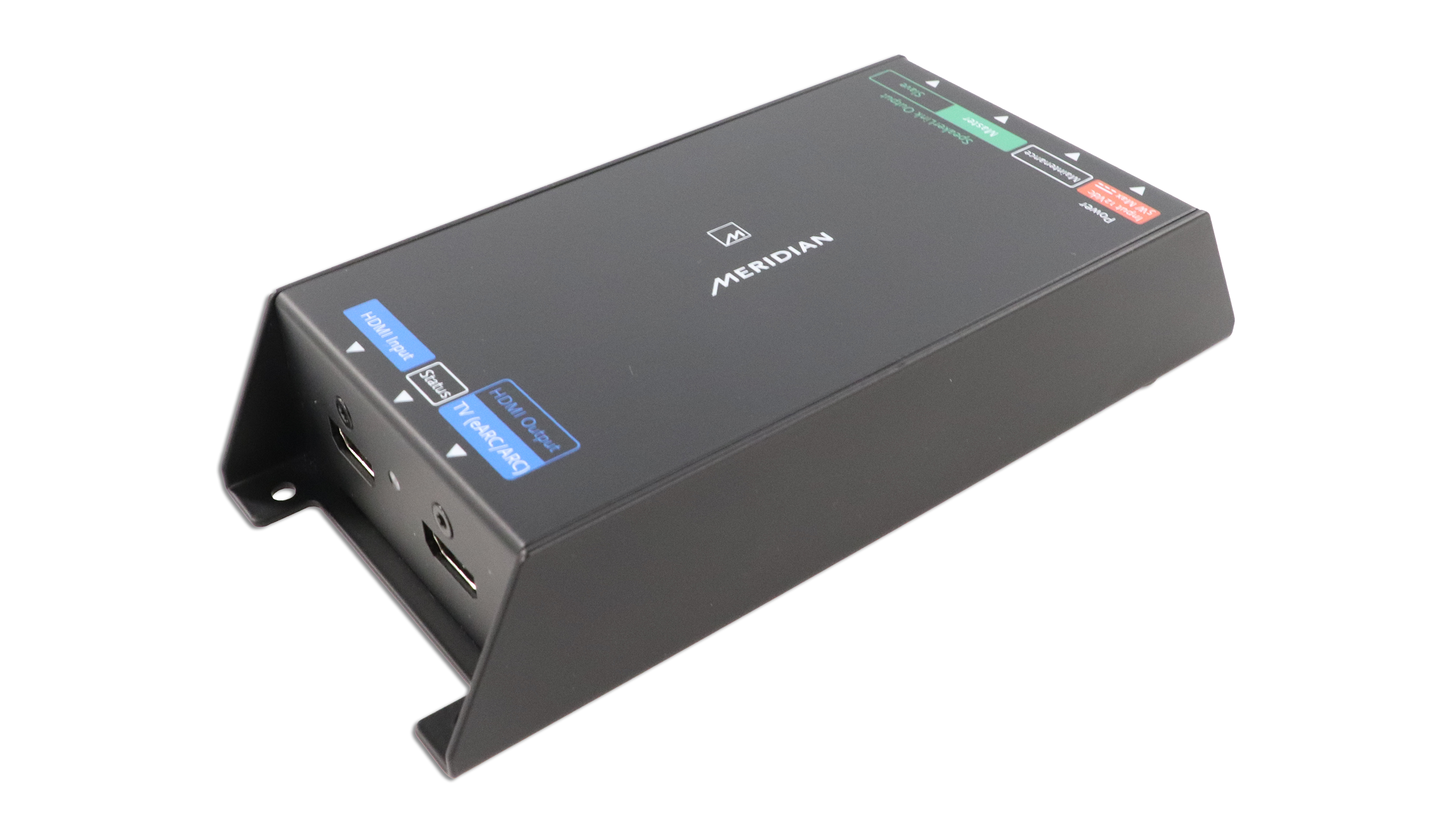

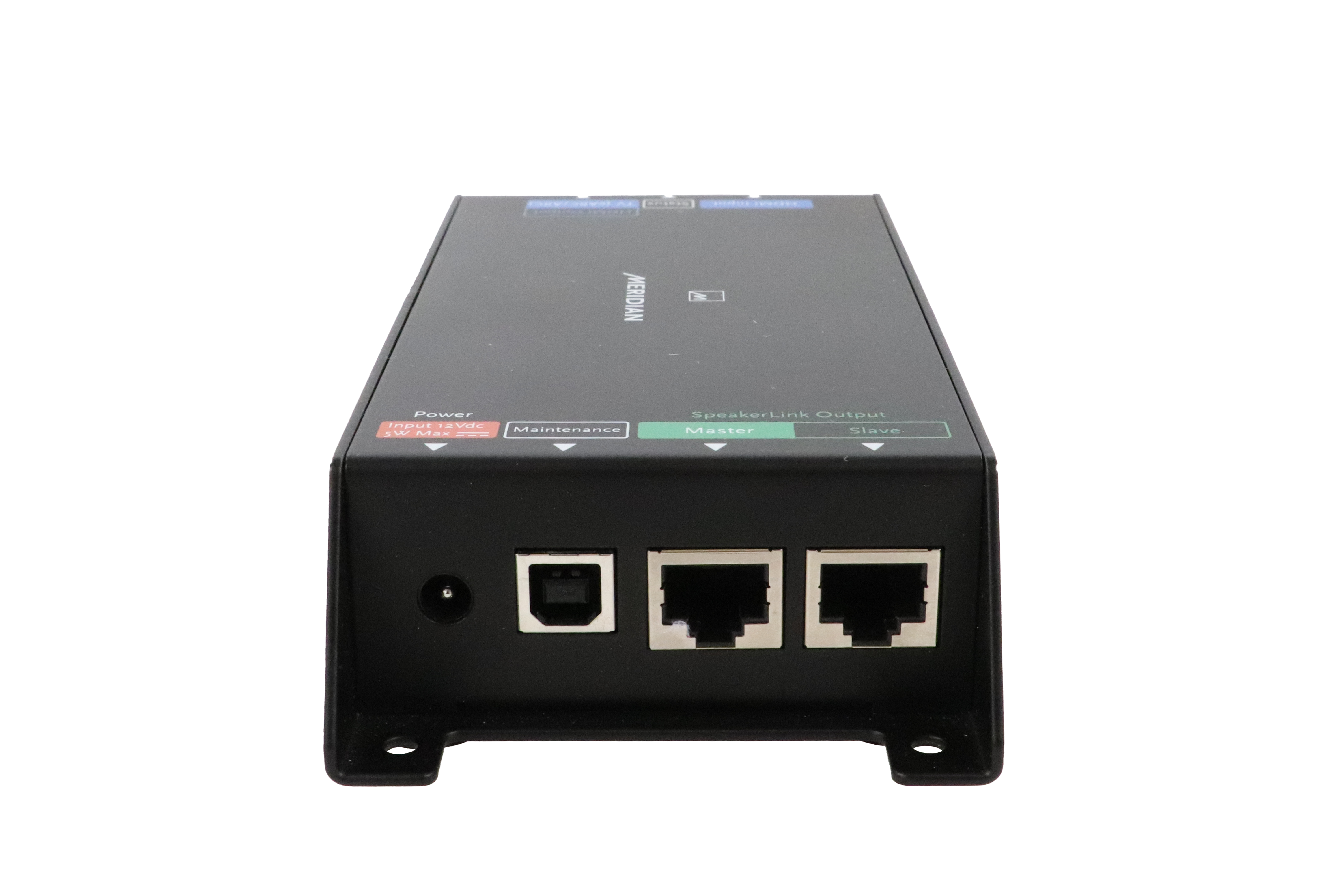

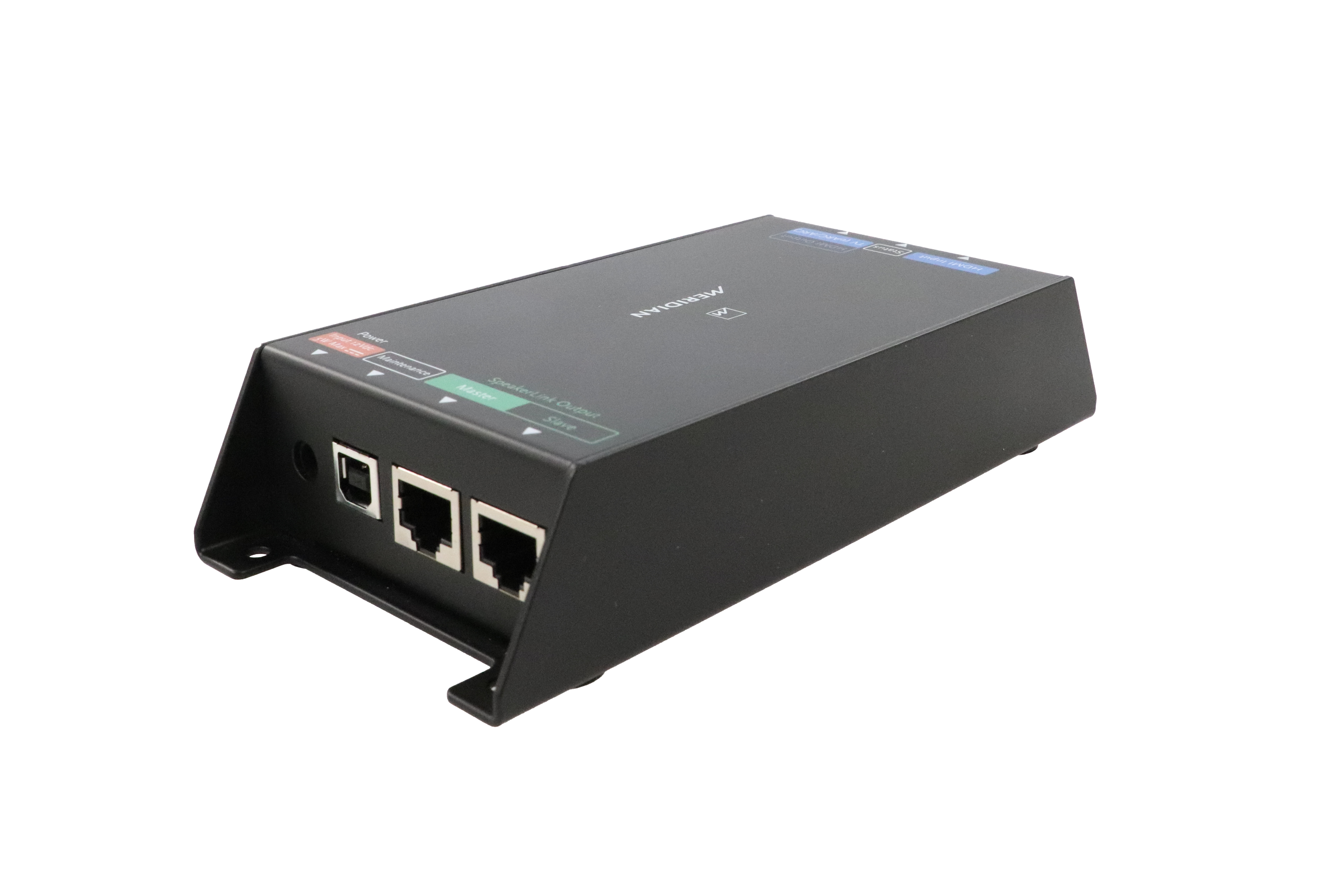

CONNECTIVITY

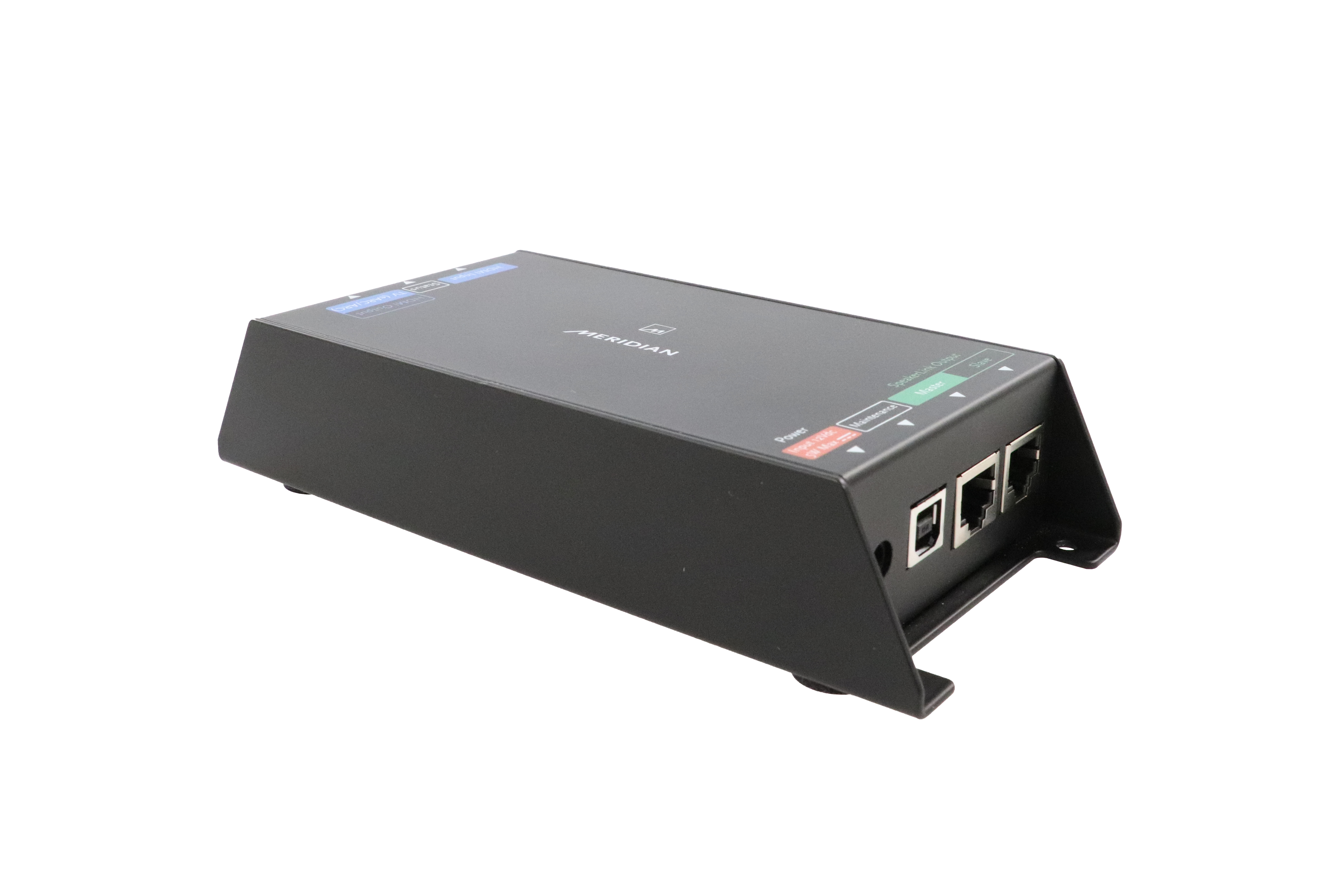

Two Meridian SpeakerLink: Master and Slave, RJ45
USB- B for configuration and maintenance

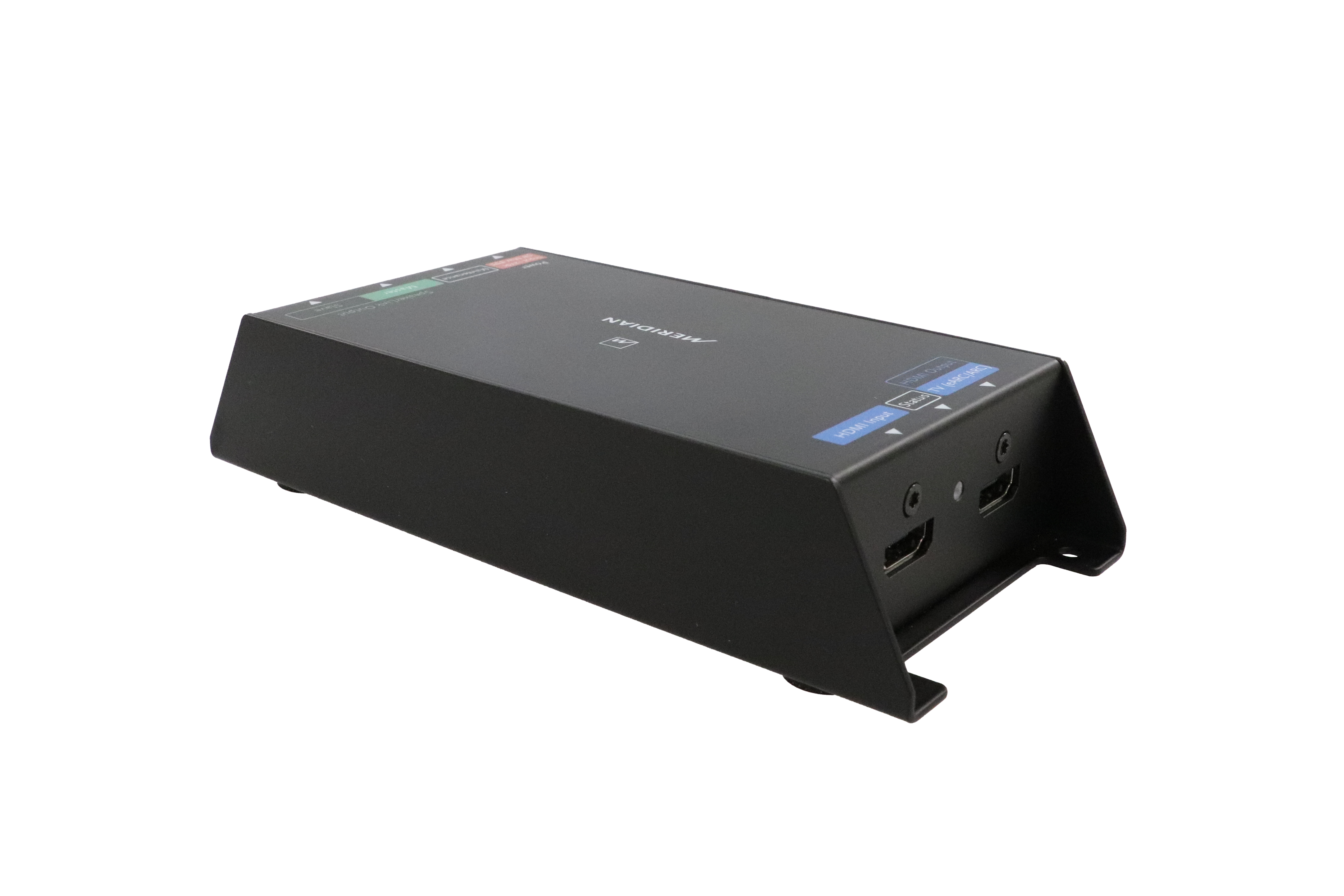

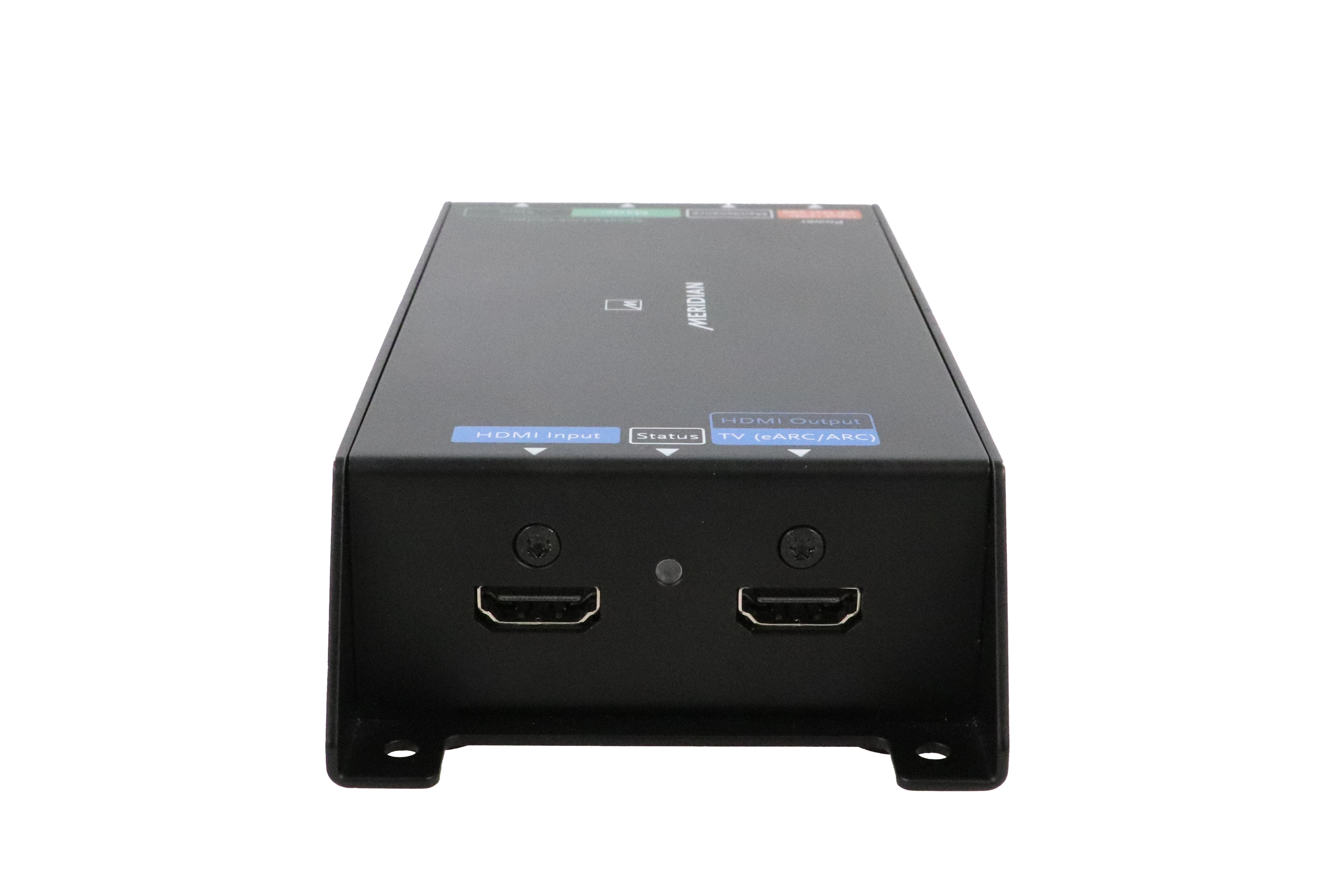

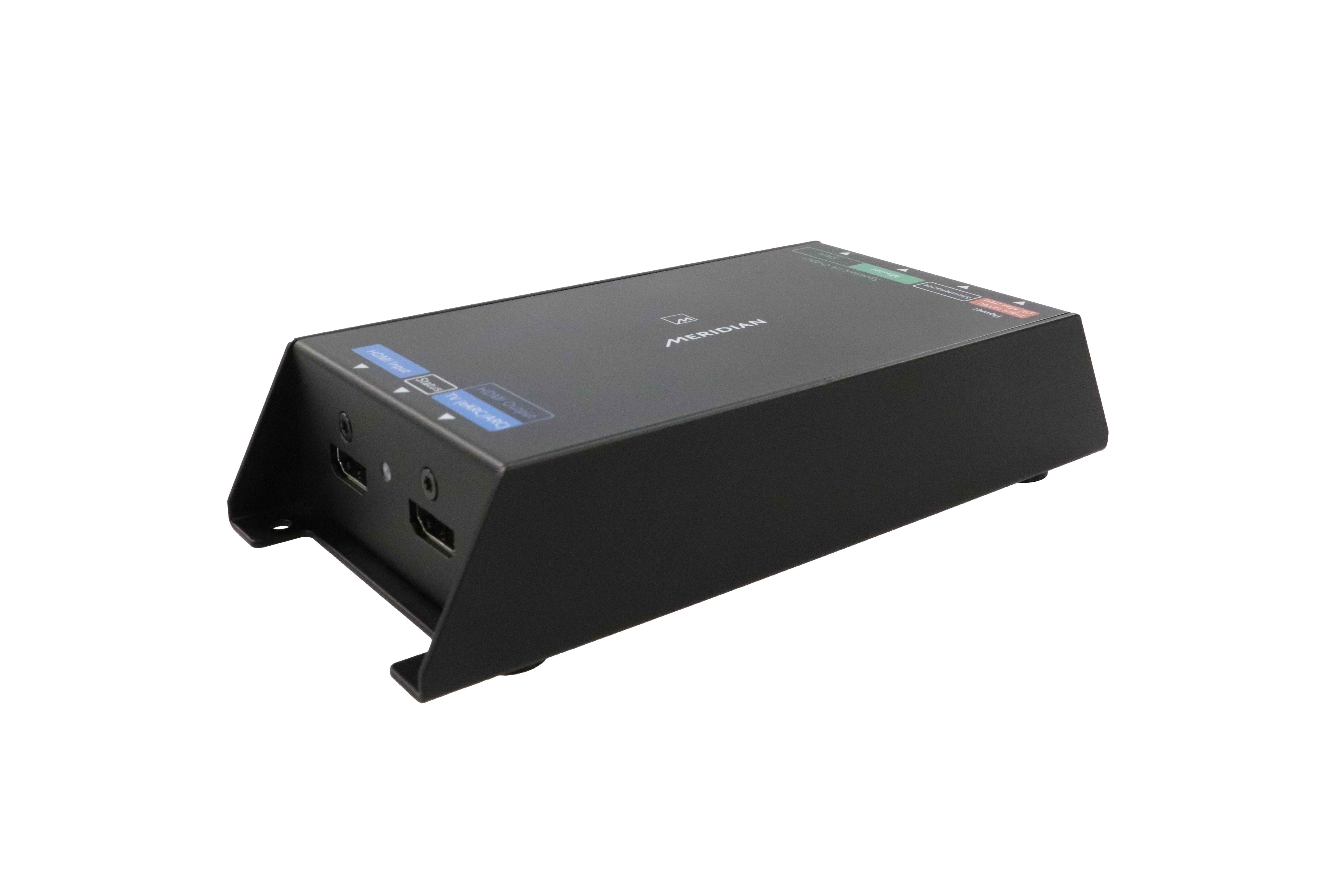

HDMI: CEC enabled, eARC and ARC compatible
HDMI input socket for additional source product
AUDIO INPUT CAPABILITIES
HDMI from TV via ARC: 2-channel at up to 48kHz@16bit LPCM
HDMI from TV via eARC: 2-channel at up to 192kHz@24bit LPCM
HDMI input: 2-channel at up to 192kHz@24bit LPCM
SPEAKERLINK CAPABILITIES
2-channel at up to 192kHz@24bit LPCM or Meridian True Link (MHR)
Encoded Dolby Digital and DTS passthrough (no decoding)
CONTROL OPTIONS
CEC over HDMI
Meridian SpeakerLink
Meridian Control app from Windows PC or MacOS via USB
Third-party control systems using the Meridian Automation Interface
POWER OPTIONS
Via Master SpeakerLink socket from connected Meridian product. See User Guide or Datasheet for details.
External PSU (available separately), 12V, 5W
DIMENSIONS
HEIGHT: 35.5mm [1.4in]
WIDTH:80mm [3.2in]
DEPTH: 170mm [6.7in]
WEIGHT: 0.52kg [1.1lbs]
