Forming the heart of a powerful and flexible Meridian home theatre system, G65 is a highly flexible Surround Controller, featuring many of Meridian’s key technologies such as Meridian Room Correction (MRC) while combining high performance, connectivity and ease of use.

When partnered with the UHD722, the G65 features a comprehensive input capability to accommodate the widest range of audio and video sources. Equipped with SpeakerLink and balanced analogue outputs, the G65 is equally at home in Meridian Digital Theatres and with analogue loudspeaker-based systems.

Surround Sound

G65

The G65 is a highly flexible Surround Controller, featuring many of Meridian’s unique technologies plus a comprehensive set of digital and analogue input and outputs. It forms the heart of a powerful, flexible, and highly specified Meridian home theatre system that delivers superb performance on movies and music alike.

Meridian Room Correction

Unwanted resonances within the room are minimised using sophisticated filters designed to mitigate the decay times as well as the amplitude of problem frequencies.

Q-Sync

Meridian Q-Sync deploys Meridian's multiple “First In, First Out” buffering system which minimises jitter, ensuring perfect timing and improved clarity.

Digital Precision

Meridian Digital Precision maximises the signal-to-noise ratio of the digital audio, ensuring the finest details of every song are retained.

True Link

Meridian True Link is an encryption method for transferring high-definition digital audio over SPDIF connections. It allows secure movement of digital audio whilst ensuring that the SPDIF clock signal can be transmitted with minimum degradation.

True Time

True Time is Meridian's proprietary Apodising Filter that avoids pre-ringing and cleans up the effects of early filters, converting pre-echo to post-echo.

Trifield

Meridian Trifield is an upmixing technology that provides immersive multichannel audio from two channel stereo content, configured for any loudspeaker layout.

Linear Power Supply

A high-capacity, linear power supply provides a solid foundation for superb audio performance.

Output connection flexibility

Features SpeakerLink outputs for use with Meridian loudspeakers as well as balanced analogue outputs for use with analogue active loudspeakers or conventional amplifiers and passive loudspeakers.

Customisable inputs

Up to twelve different sources can be assigned to any of the various input types; digital co-ax (2-ch and multichannel), optical digital, analogue (2ch and multichannel), SpeakerLink. Sources can be given custom names which suit the needs of the users.

The Search for Authenticity

nderstanding the perfect formula for sound: technology plus emotion.

Find Out More

The award winning G-Series high-resolution power amplifiers integrate the same technology we used within the Special Edition range of loudspeakers.

Forming the heart of a powerful and flexible Meridian home theatre system, G65 is a highly flexible Surround Controller, featuring many of Meridian’s key technologies such as Meridian Room Correction (MRC) while combining high performance, connectivity and ease of use. When partnered with the UHD722, the G65 features a comprehensive input capability to accommodate the widest range of audio and video sources. Equipped with SpeakerLink and balanced analogue outputs, the G65 is equally at home in Meridian Digital Theatres and with analogue loudspeaker-based systems.

The Special Edition Loudspeakers

Meridian’s goal has always been to reproduce the sound of the original performance exactly, and let nothing else get in the way.

Find Out More

With its extensive Research and Development programme Meridian has pioneered the development of a host of innovative audio technologies many of which feature in today’s Meridian products.

AT A GLANCE

Here you will find a quick overview of the product highlights and features.

USER GUIDE

Here you will find installation information and operating instructions.

PRODUCT BROCHURE

Here you will find a summary of the complete range of Meridian products in one document.

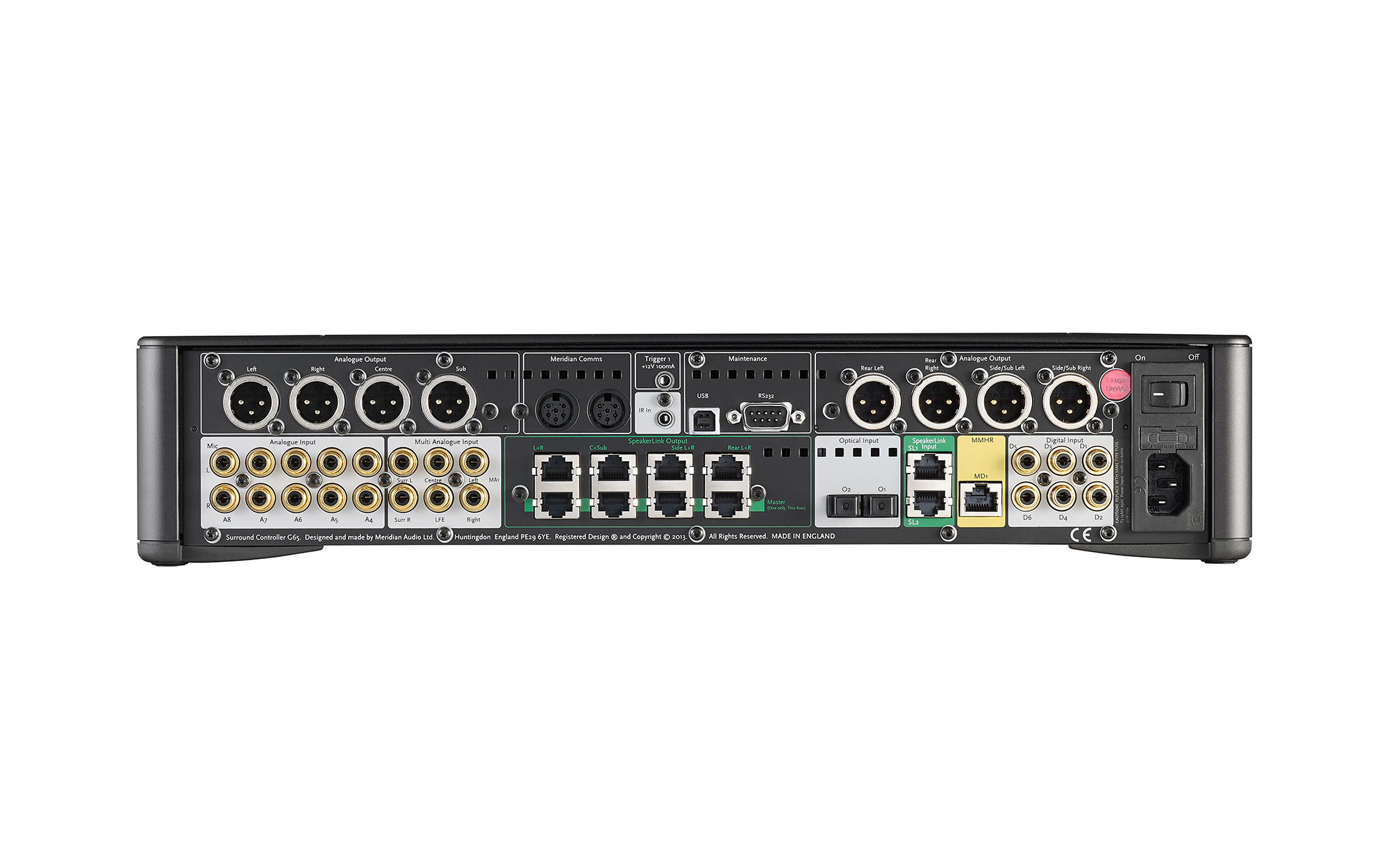

AUDIO INPUTS

1 x MMHR (Meridian Multichannel High Resolution™) 6-channel input designed to receive audio from the Meridian UHD722 HDMI processor

2 x SpeakerLink (RJ45) inputs for connection to Meridian products

6 x S/PDIF digital (coax), D1–D3 can be configured as a six-channel digital input with Meridian SmartLink

2 x Toslink S/PDIF optical inputs

8 x analogue stereo inputs, (phono). A1–A3 can be configured as a six-channel analogue input. 0.5–2.5Vrms adjustable, input impedance 20kΩ


AUDIO OUTPUTS

8 x SpeakerLink digital (RJ45): L, R, C, Sub, Side L, Side R, Rear L, Rear R

8 x analogue balanced (XLR): Main L, Main R, Side L, Side R, Rear L, Rear R, Centre, Sub


COMMS

2 x Legacy Meridian Comms (DIN), 1 x 12V Trigger, 1 x IR in for G12 receiver, USB & RS232 remote control/configuration


PROCESSING

5 x Freescale processors running at 750 MIPS (million instructions per second). 48-bit arithmetic throughout.


CONVERSION

24-bit Sigma-Delta converter chips operating at up to 96kHz on analogue inputs and outputs

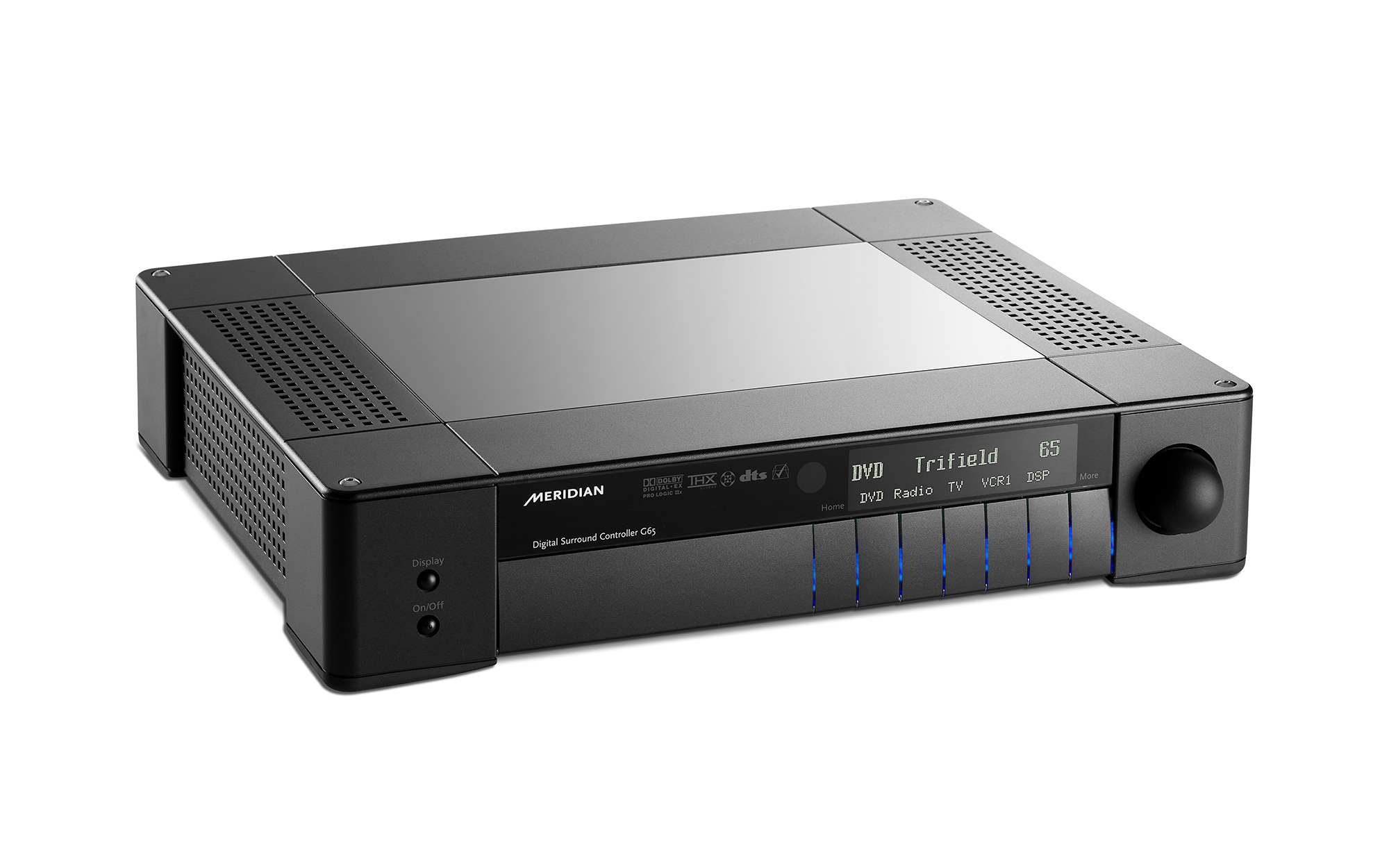

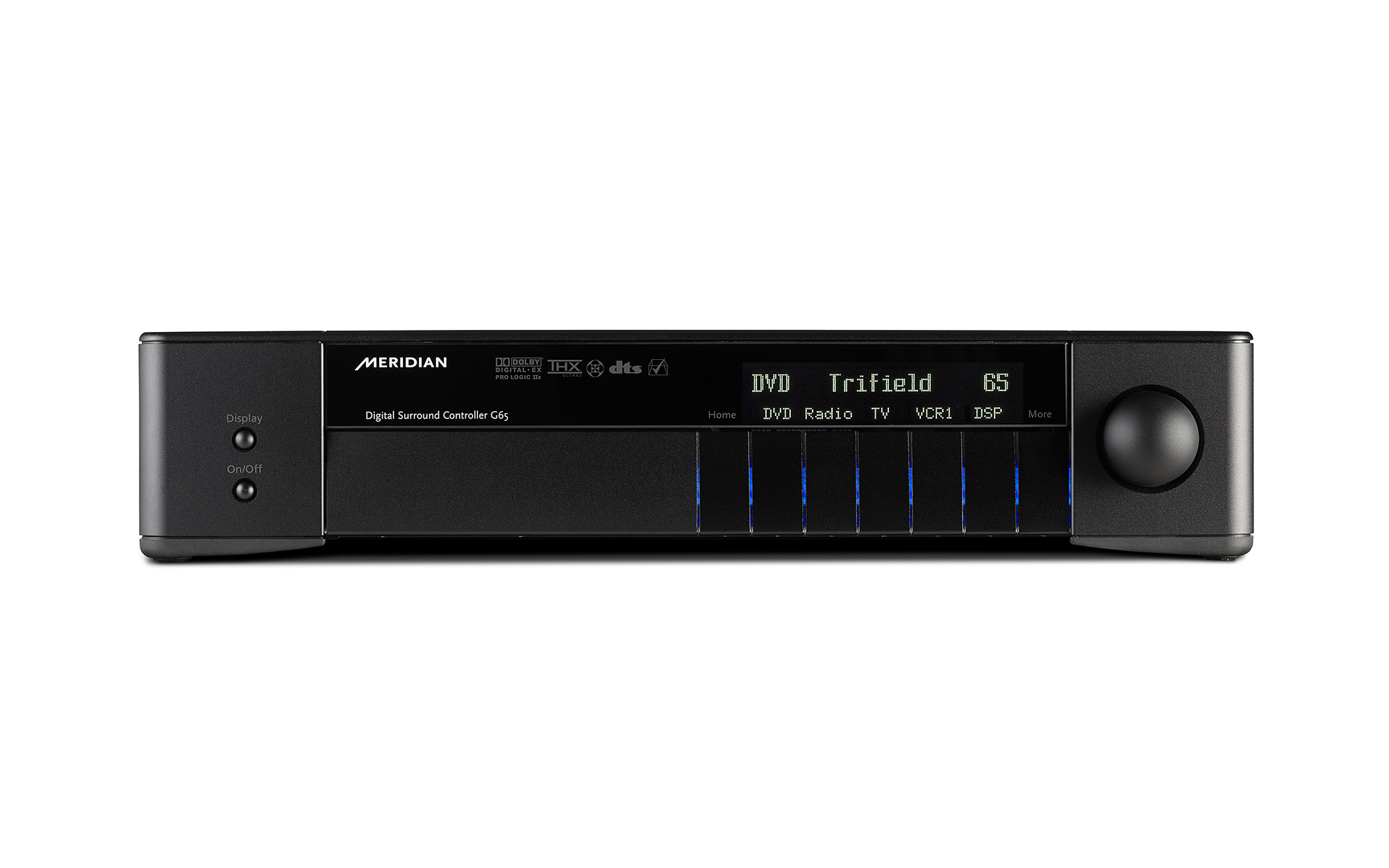

DISPLAY

Multi-character dot-matrix Vacuum Fluorescent Display

Front-panel keys back-illuminated; standby button lit when of


CONTROLS

Front-panel soft keys include control of Source, Mute, etc. Power and Display buttons, rotary-encoder volume control

Full remote control via Meridian System Remote or RS232. Serial link or maintenance USB port used for firmware updates

Config via serial or front panel wizard


DSP MODES

Include Direct, Stereo, Music, Trifield, Ambisonics (2-ch UHJ & ≤3-ch B-Format; 4 – 7 speaker decode), Super Stereo, MusicLogic, PLIIx Music, PLIIx Movie, PLIIx THX, TV Logic, Mono, Discrete, Cinema, THX, THX Music, THX Surround EX, THX Ultra2 Cinema and Meridian Room Correction


DIMENSIONS / WEIGHT

HEIGHT: 90mm [3.54in]

WIDTH: 440mm [17.32in]

DEPTH: 350mm [13.78in] plus connectors

WEIGHT: 10kg [22lbs]


POWER

Linear power supply with true toroidal transformer, 50–60Hz, 40W, 120V & 230V


RACK MOUNTING

Kit available from Meridian authorised dealers
