Perfect for movies and music, the Special Edition DSP7200HC is an ideal partner for both Special Edition DSP7200 and DSP8000 XE in a multi-channel system.

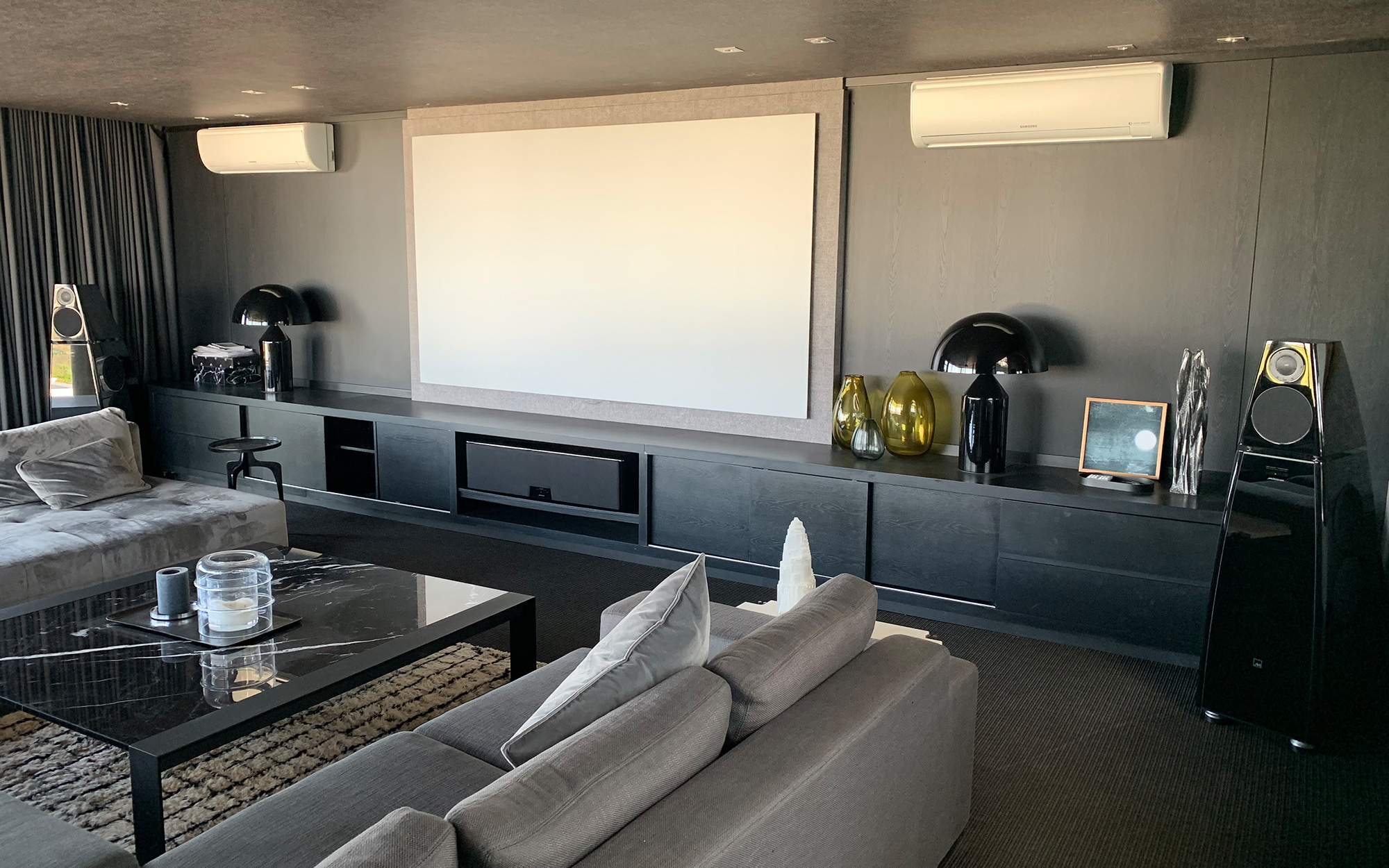

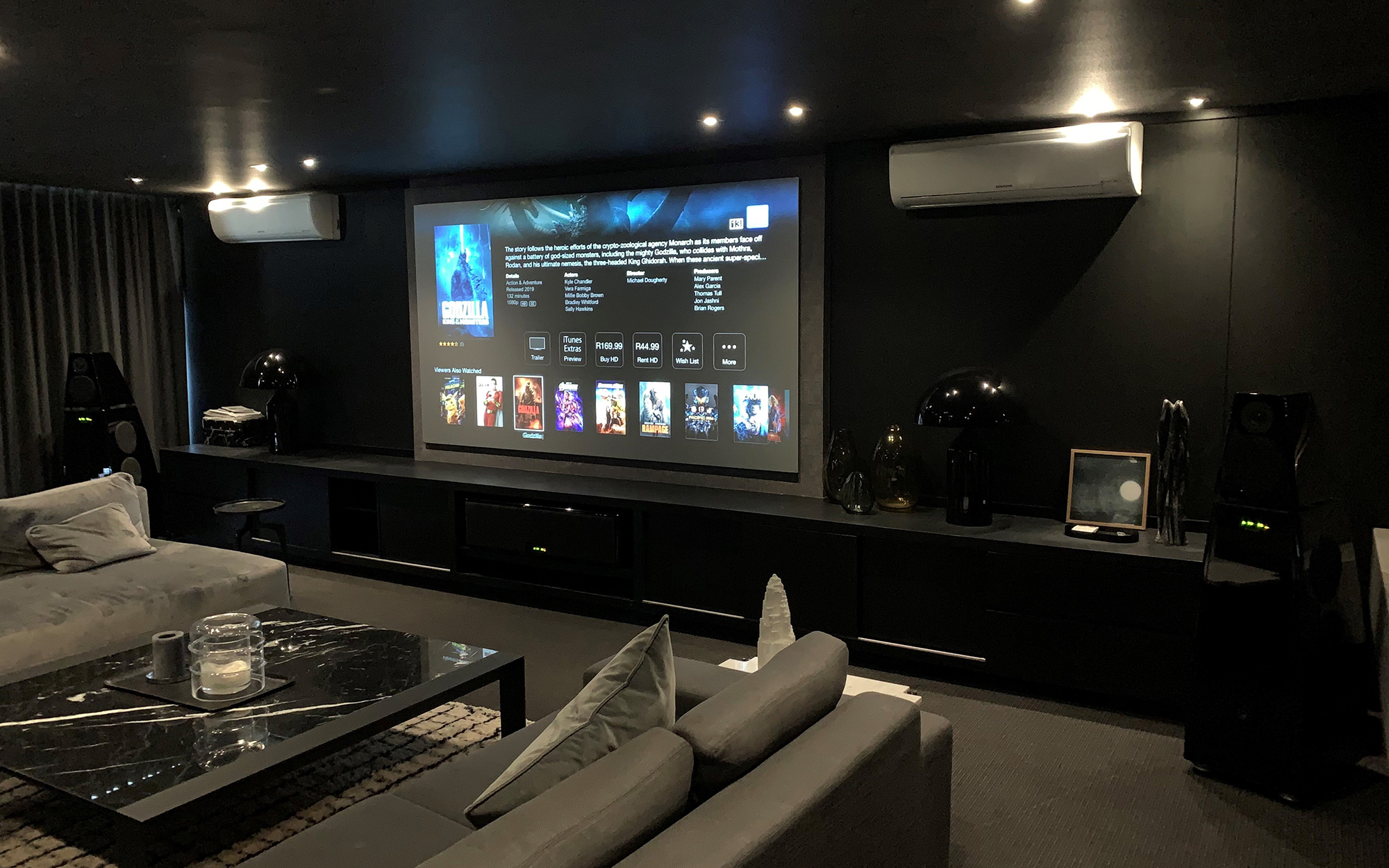

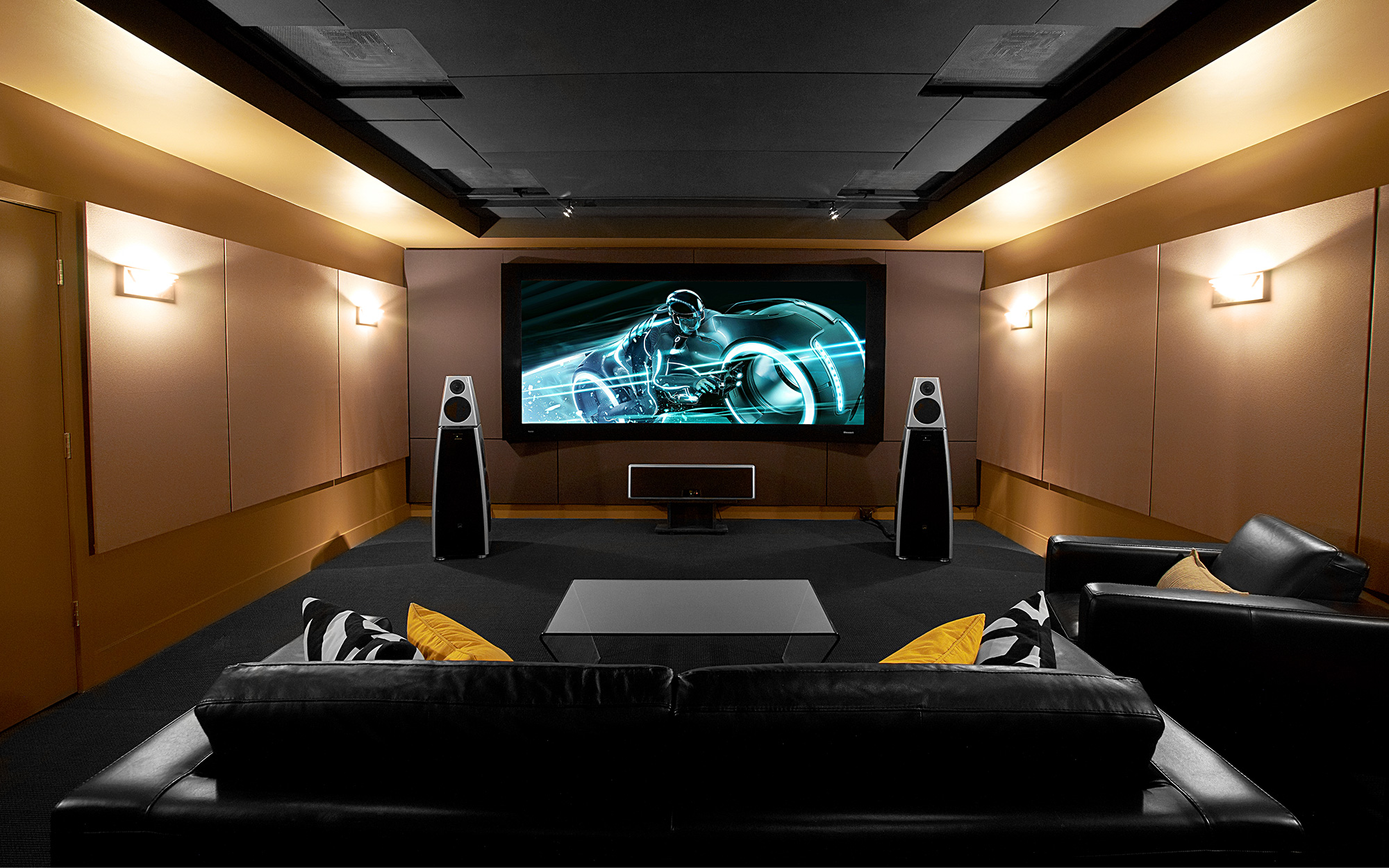

The DSP7200HC SE is designed for mounting under a large-screen TV, behind an acoustically-transparent projection screen and in systems that include Meridian free-standing or in-wall loudspeakers.

The Special Edition DSP7200HC provides sound that is incredibly lifelike in scale and tone. This horizontal centre-channel loudspeaker uses our Full Frequency Alignment technology to correct the increased delays inherent on lower parts of the frequency range, resulting in a sweeter, more natural sound. Our unique Image Elevation technology allows the Special Edition DSP7200HC to be placed below the screen while having its sound image psychoacoustically tied to the on-screen action, helping to create an immersive movie experience.

Find a distributor

Reference Series

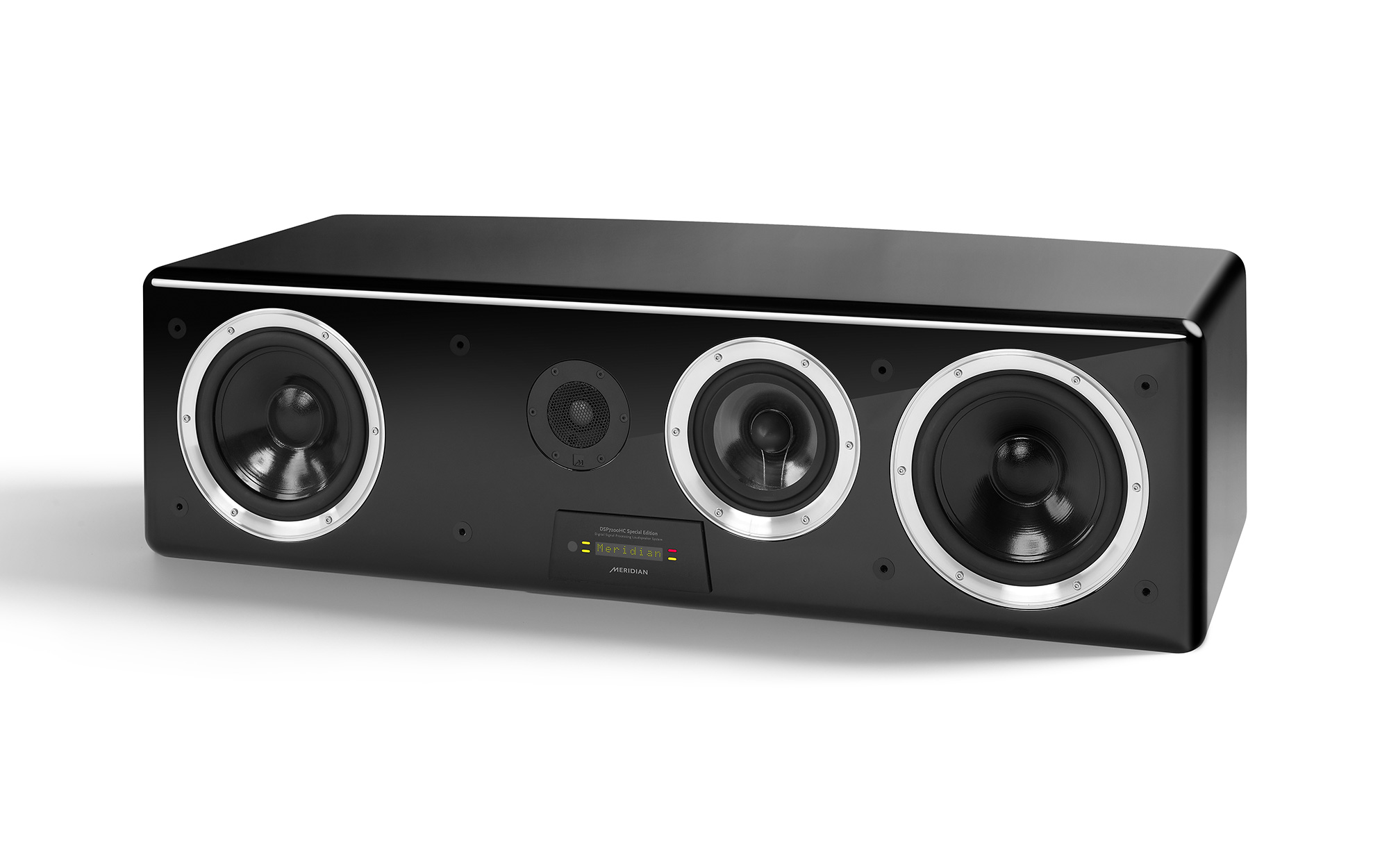

Special Edition DSP7200HC

Perfect for movies or music, the Special Edition DSP7200SE HC is the ideal companion for both a pair of Special Edition DSP7200 or DSP8000 XE loudspeakers in a multi-channel system. The DSP7200SE HC provides sound that is incredibly lifelike, in scale and tone. The horizontal centre-channel enables a stunningly effective home theatre set-up, while also providing seamless sound staging for multichannel music. Finished as standard in piano lacquer black, our Select finishing option means Special Edition loudspeakers can also be supplied in the colour of your choice. Full-range floorstanding and horizontal centre-channel options are offered, for audio or home cinema solutions.

Image Elevation

Image Elevation psychoacoustically raises the sound image to the centre of a screen – where the listener would expect to hear it from.

Bespoke Signal Mapping

Meridian Bespoke Signal Mapping utilises digital signal processing to apply tailored crossover filters that are designed specifically for each configuration of drive units within a loudspeaker.

E3 Bass

Meridian E3 Bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.


FFA (Full Frequency Alignment) is a combination of digital filters and delays to correct the group-delay of a loudspeakers. It ensures that all frequencies reach the listener’s ear at the same time.

Pro-Active Bass

Meridian Pro-Active Bass protects the bass drivers from over-excursion, ensuring maximum bass output without damaging the drive units.

Pro-Active Thermal

Meridian Pro-Active Thermal monitors the audio being sent to the mid-range drivers and tweeters and limits the overall volume of the loudspeaker if there is a risk of the drive units getting too hot.


Meridian Q-Sync deploys Meridian's multiple “First In, First Out” buffering system which minimises jitter, ensuring perfect timing and improved clarity.

True Time

True Time is Meridian's proprietary Apodising Filter that avoids pre-ringing and cleans up the effects of early filters, converting pre-echo to post-echo.

True Link

Meridian True Link is an encryption method for transferring high-definition digital audio over SPDIF connections. It allows secure movement of digital audio whilst ensuring that the SPDIF clock signal can be transmitted with minimum degradation.

Meridian True Time

After painstaking research, Meridian developed a special filter that avoids pre-ringing, so it can be steeper, cleaning up the effects of early filters.

True Time

The Reference Series

The Reference series comprises of five loudspeakers, each of which represents the pinnacle of what Meridian has achieved in their respective formats.

Built by hand in the UK, all Meridian loudspeakers feature Digital Signal Processing (DSP) technology. This ingenious, yet elegant design means that the loudspeaker enclosure contains the entire system’s electronics including its amplification. In common with all other Meridian loudspeakers, the models in the Reference series support a suite of Meridian’s unique technologies.

Special Edition Loudspeakers

Provides accurate time alignment of the drivers in the system, delivering exceptional imaging and a clearm transparent, more life like sound.

Watch Now

Here you will find a quick overview of the product highlights and features.


Here you will find installation information and operating instructions.


Here you will find a summary of the complete range of Meridian products in one document.

Audio Inputs

Meridian SpeakerLink (RJ45) & RCA phono digital inputs accepting 32kHz to 96kHz sampling rates at up to 24-bit

Audio Outputs

Meridian SpeakerLink (RJ45) & RCA phono digital outputs delivering 32kHz to 96kHz sampling rates at up to 24-bit


Peak SPL: 118dB at 1m (music material)

Noise less than 15dB SPL

Frequency response in-room within 3dB: 30Hz to over 32kHz


4 x 150W (600W)

Overall distortion typically <0.02% at any frequency or level

Bass Drivers

2 x 200mm long-throw

Mid Driver

160mm polypropylene

Beryllium Dome Tweeter

25mm (1”) Meridian piston in short-horn, beryllium dome with silver voice-coil


Eight character display with additional status indicators; can be blanked in use

Dimensions / Weight

HEIGHT: 295mm [11.6in]

WIDTH: 1060mm [41.7in]

DEPTH: 478mm [18.8in] (At deepest point)

WEIGHT: 64kg [141lbs]


17VA standby; 920VA max
