Accessories

Distributor 1

The Distributor 1 expands the connectivity offered within Meridian systems to help achieve seamless integration in a wide range of applications.

Whether it’s providing extra inputs for a single pair of Meridian loudspeakers, or acting as an interface between control systems, multiple sources and Meridian products in a multi-zone set-up, the Distributor 1 is an installation problem solver.

Find a distributor

Accessories

Distributor 1

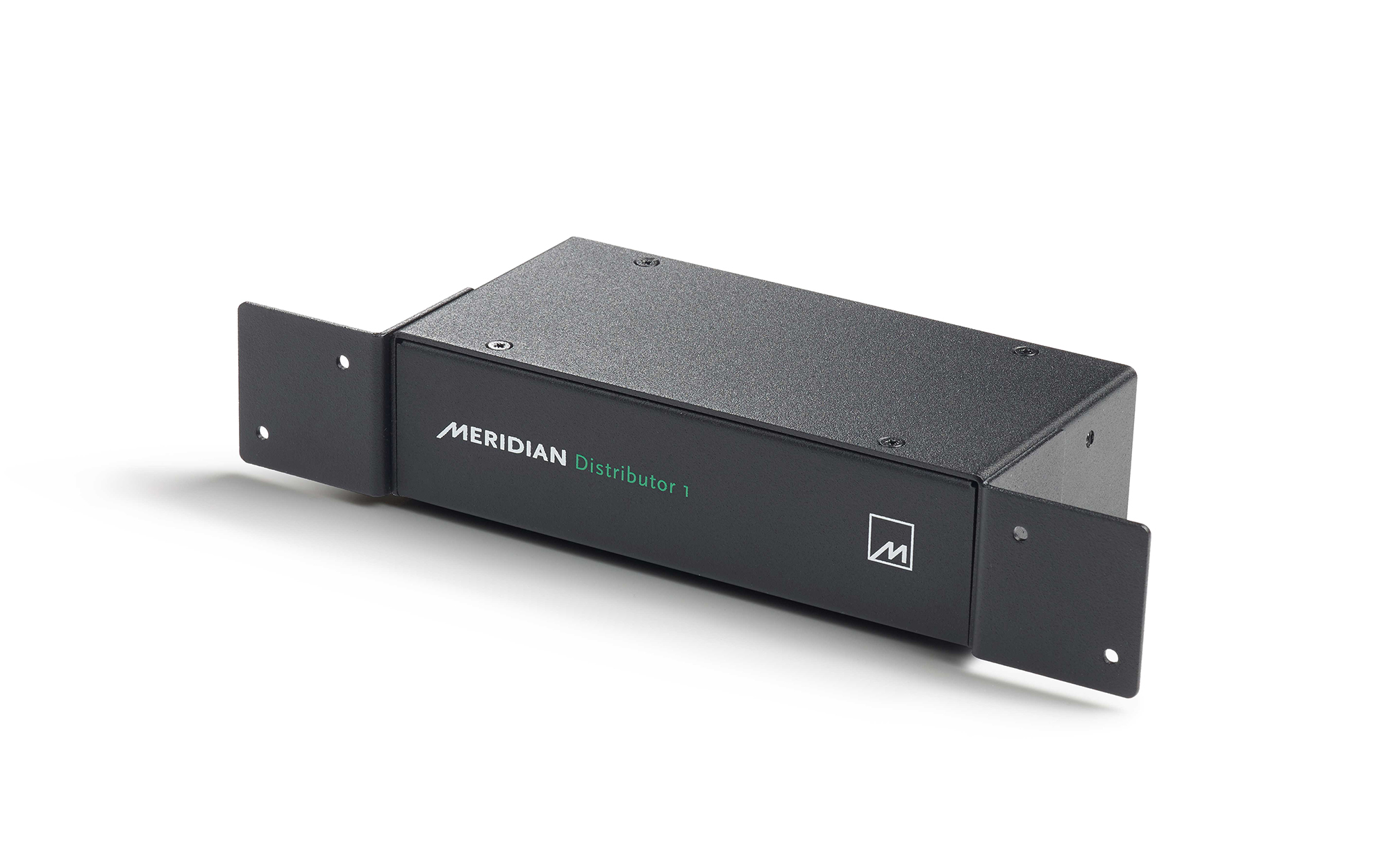

The Distributor 1 is a simple single zone solution that allows you to easily integrate analogue, digital and SpeakerLink audio into Meridian digital active loudspeakers. It is ideal for taking audio from an output of a HDMI matrix system to provide high-quality audio from video sources.

INPUT EXPANDER

Adds more inputs to Meridian Digital Active loudspeakers. It provides a SpeakerLink passthrough, a digital co-ax input and an analogue input via its high-quality onboard ADC.

CONTROL ENABLER

Allows RS232 control of Meridian loudspeakers from third-party control systems via its 9-pin DSub connector.

INSTALLATION AND CONFIGURATION TOOL

An excellent aid while setting-up and troubleshooting systems featuring Meridian Digital Active loudspeakers. Allows audio playback to be monitored “on-the-fly” while experimenting with changing settings via RS232.

The Special Edition Loudspeakers

Meridian’s goal has always been to reproduce the sound of the original performance exactly, and let nothing else get in the way.

Watch Now

With its extensive Research and Development programme Meridian has pioneered the development of a host of innovative audio technologies many of which feature in today’s Meridian products.

AT A GLANCE

Here you will find a quick overview of the product highlights and features.

USER GUIDE

Here you will find operating instructions.

PRODUCT RANGE BROCHURE

Here you will find a summary of the complete range of Meridian products in one document.

AUDIO INPUTS

1 x RS232 control signal (DB9)

1 x SpeakerLink (RJ45)

1 x Analogue stereo pair (phono) converted internally to 24-bit 96kHz digital

1 x Digital S/PDIF coax (phono)

1 x USB B type for configuration if required

AUDIO OUTPUTS

2 x SpeakerLink (RJ45, Master & Slave)

Digital Aux S/PDIF coax (phono) for linking between zones

DIMENSIONS / WEIGHT

HEIGHT: 42mm [1.65in]

WIDTH: 160mm [6.3in]

DEPTH: 80mm [3.15in]

WEIGHT: 575kg (1.27lb)

POWER

2W via Meridian Speakerlink /USB
